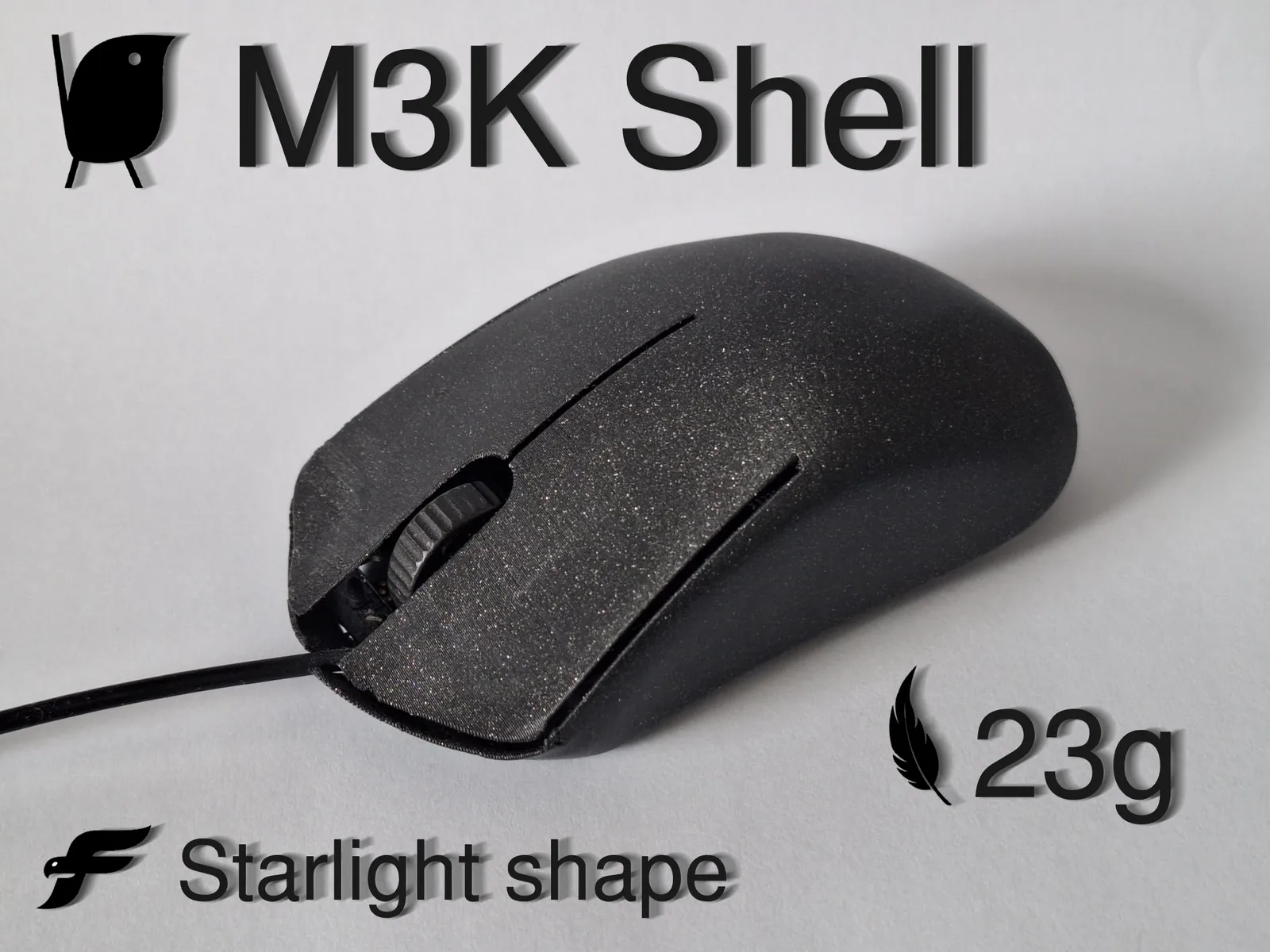

Zaunkoenig M3K shell, the “Warthog” (~23g total)

Printing
No support required! print it upright on the flat spot on the back.
Line width of 0.4mm recommended
PLA recommended
No infill
NOTE: if your printer is not capable of bridging ~56mm support will be required, but give it a shot without you might be surprised 😉
Post Processing
Before the mouse buttons work you need to snip three points, two in the front corners and one at the scroll wheel hole.
Inside where you fit the front two screws the bridge needs to be cut for the scroll wheel to fit.
Put your favorite 7 mm skates on the bottom!
Assembly
Attach cable to board and pull it through the scroll wheel hole.
Fit the main board with straight bar on top and triangles underneath the board, use the T4 M2 screw for the triangle and the T6 M2 for the back bar.
Fit scroll wheel to secondary board and attach it to the main board, use your index finger to reach behind the main board and pinch with your thumb on the secondary board.
Use the remaining screws to attach the secondary board.
Enjoy the lightest full size gaming mouse on earth!
UPDATE: Added a scroll wheel holder for people experiencing problems with the wheel, if it is pressed fully into the encoder it shouldn’t come out but if it does try the holder! (did not test the holder myself yet)
